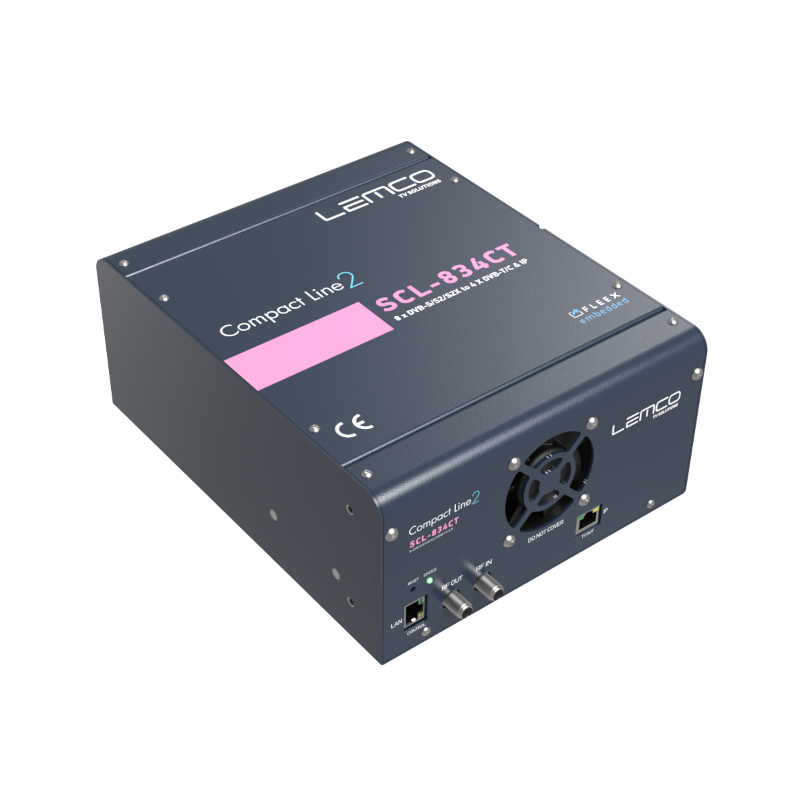

SCL-834CT 8 × DVB-S/S2/S2X to 4 × DVB-T/C & IP

The new SCL-834CT headend from Compact Line 2 series is a very powerful, all-in-one device, able to receive up to 8x independent satellite (DVB-S/S2/S2X) signals with multi-stream support and convert them in 4x DVB-T/C RF output channels while offering 1x Gbit IPTV streaming simultaneously. It supports “pool” technology, meaning that the user is able to select any program from any of the 8x inputs and assign it to any of the 4x RF + IP outputs providing great flexibility. A powerful CPU (Quad core @ 1.8GHz / 2GB RAM) is responsible for controlling
the device using Linux OS while providing a friendly and very fast user interface as well as the ability of remote or local control of the device via Ethernet. Its small size and powerful features render the SCL-834CT the ideal solution in the cases that we want to distribute FTA (Free-To-Air) TV programs coming from satellite (DVB-S/S2/S2X) sources with multi-stream support to a CATV installation using the DVB-T/C and IP technology. Finally, the SCL-834CT is able to host an IPTV middleware (Fleex Embedded), without the need of any external server, providing the capability to the final user to control all TV monitors in an installation (LG, Samsung, Philips and custom STBs supported) while offering a variety of different features like Live TV, Live Radio, Info channels, Cast, Weather, Alarm, EPG and many more

Features
• 8 x independent multi-standard inputs DVB-S/S2/S2X
• Multi-stream reception support
• 4 x RF output DVB-T/C (software selectable)
• Gbit IP streaming (up to 64 x SPTS / 4 x MPTS)
• “Pool” technology
• MER value > 40dB
• PID Filtering
• Custom NIT/SDT
• Linux OS
• Fleex embedded Support
• Very friendly user interface
• Wall or rack mountable
• Compact size
• SNMP v2 support
• 5year warranty
