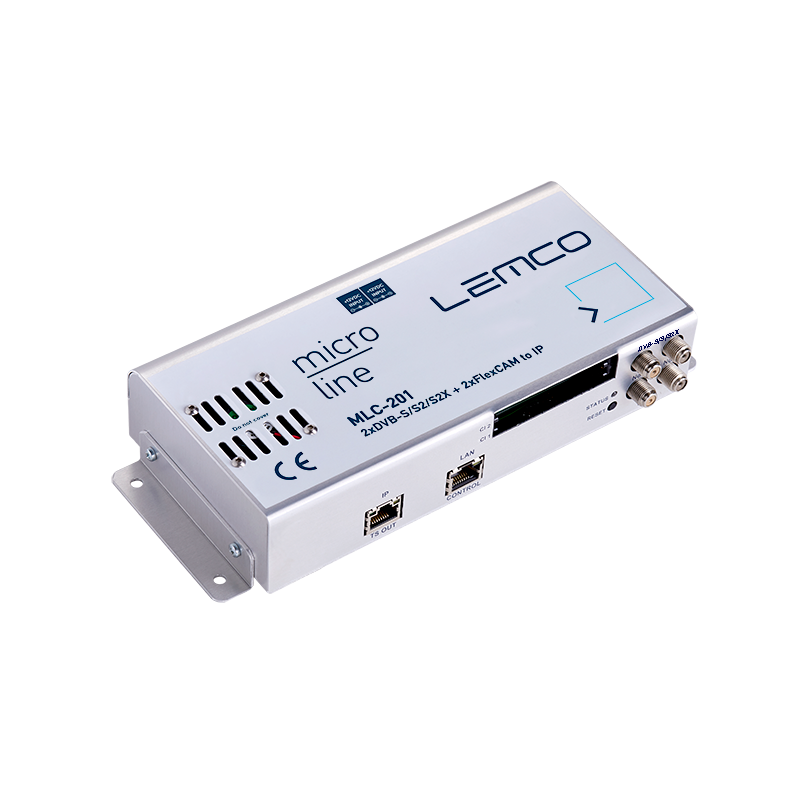

MLC-201 2×DVB-S/S2/S2X + 2×FlexCAM to IP

The MLC-201 is a very powerful, all-in-one device, able to receive up to two (2) independent satellite (DVB-S/S2/S2X), signals supporting multistream reception and convert them in IPTV streaming using UDP/RTP protocols multicast/ unicast. The MLC-201 supports two (2) CI interfaces, using FlexCAM technol-ogy, to be able to descramble any TV content by using the appropriate CAM (Conditional Access Module). Moreover, it supports “pool” technology, meaning that the user is able to select any program from any of the two (2) inputs and assign it to any of the four (4) IP outputs providing great flexibility.

The embedded web server of the MLC-201 provides a very friendly user interface as well as the ability of remote or local control of the device via LAN.

Its small size and its powerful features render the MLC-201 the ideal solution in cases we want to distribute FTA (Free-To-Air) or scrambled TV
programs coming from satellite (DVB-S/S2/S2X) sources to a CATV installation using IP technology.

Features
• 2 x independent multi-standard inputs DVB-S/S2/S2X
•Multi-stream support
• 2x CI interfaces using FlexCAM technology
•Gbit IP streaming (up to 64 x SPTS / 4 x MPTS)
• “Pool” technology
•Dual power supplies offering redundancy mode
• PID Filtering
• Local or remote control via webserver
• Very friendly user interface
• Wall or rack mount options
•Ultra-compact size
• 5year warranty
