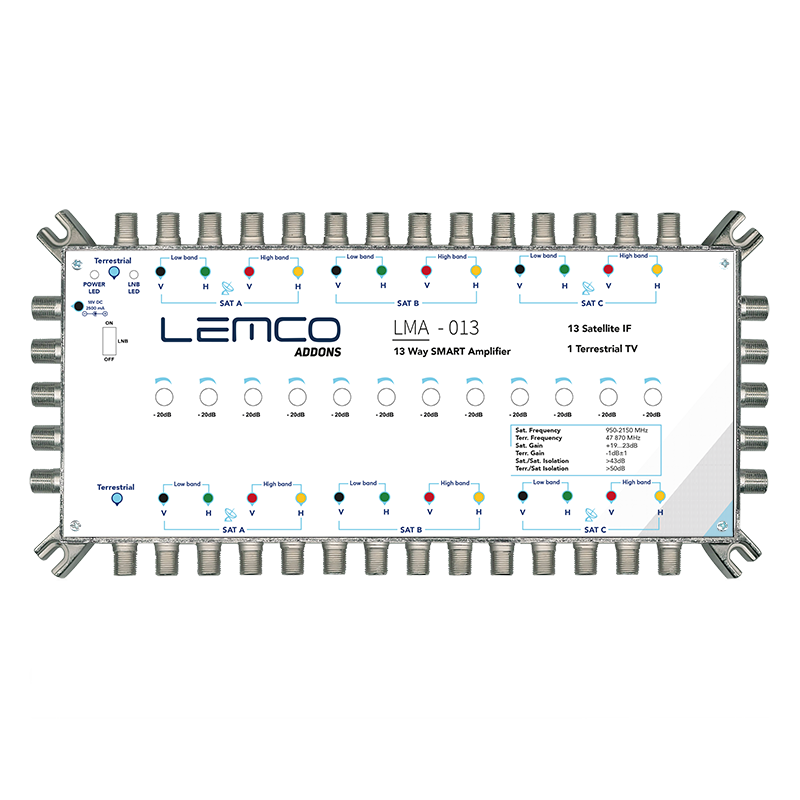

LEMCO LMA-013 Amplifier for 13-input cascade multiswitches
Features
- 12+1 trunk inputs (SAT+TER)
- SAT frequency range: 950–2150 MHz
- TER frequency range: 47–870MHz
- SAT gain: +19…23dB
- TER gain: -1dB ±1
- High isolation: SAT-SAT >43dB, SAT-TERR >50dB
- ZAMAK metal housing for durability and shielding
- PSU included (+18VDC, 880mA max.)
- Compatible with all 13-input multiswitch series
Description
The LEMCO LMA-013 Amplifier for 13-input cascade multiswitches is the ultimate solution in case you need to amplify all satellite/terrestrial signals and create large and complex installations using multiple cascade multiswitches. It utilises a new generation of components that provide zero port failure, works at low signal levels with high isolation, and has low energy consumption by using an SMPS power supply unit. The outer case is made out of ZAMAK, providing high structural quality and endurance even in the most extreme environments and superior electromagnetic shielding.
