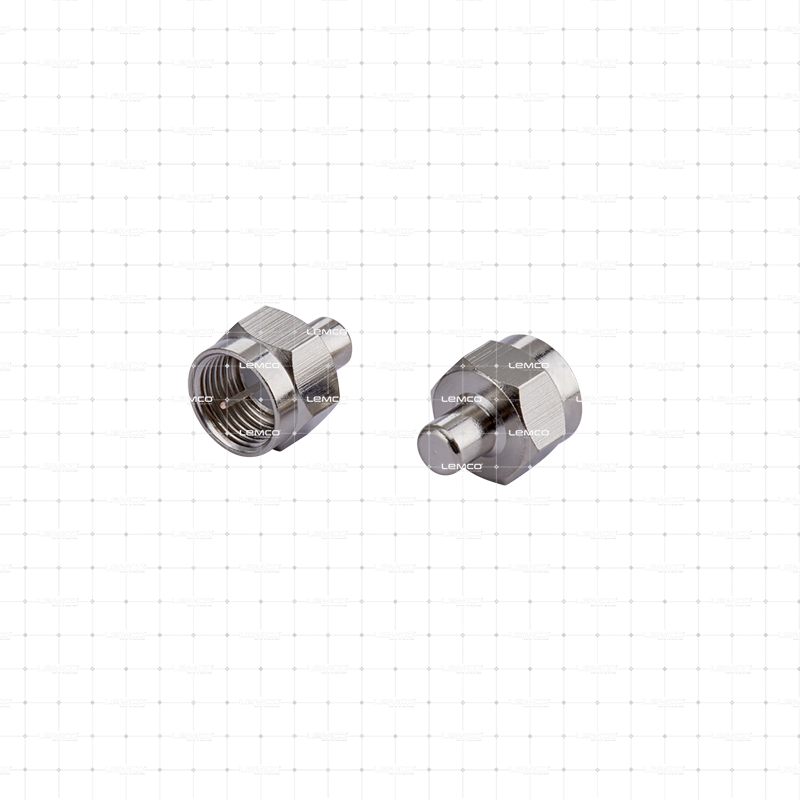

LEMCO LFC-004 75Ω termination load connector
Features
- 75Ω termination load connector
- 0.3–3000 MHz frequency range, 75 Ω impedance
- Shielding effectiveness >130 dB at 30–1000 MHz, >120 dB at 1000–3000 MHz
- Very low insertion loss (<0.01 dB across the full range)
- Return loss from -40 dB down to -22 dB
- Brass CuZn 39Pb3/zinc body, nickel-plated; gold-plated brass inner conductor
- Operating temp: -40°C to +100°C
- Compressed size 14.50 x 11 mm, 5.4 g net weight
- Package qty: 100 pcs
Description
The LEMCO LFC-004 is a 75Ω termination load connector used to properly terminate unused RF or coaxial line ends, preventing signal reflection and interference in CCTV, satellite, and broadcast systems. Built with a brass CuZn 39Pb3/zinc body and nickel plating, paired with a gold-plated brass inner conductor, this connector ensures reliable conductivity and long-term corrosion resistance.
