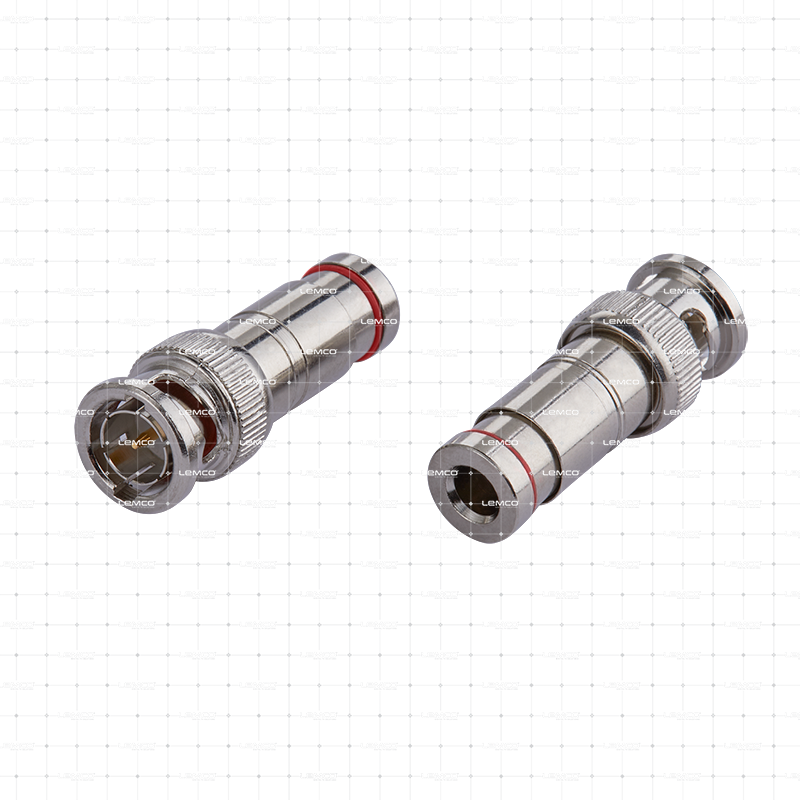

LEMCO LBC-001 BNC male compression connector
Features
- BNC male compression connector, EPDM O-ring sealed
- 0.3–3000 MHz frequency range, 75 Ω impedance
- Shielding effectiveness >140 dB at 30–1000 MHz
- Low insertion loss (<0.07 dB–0.26 dB) and strong return loss (-34 dB to -19.5 dB)
- Brass CuZn 39Pb3 body, nickel-plated with gold-plated inner conductor
- Max tensile strength 250 N; operating temp -40°C to +100°C
- Compatible with LC-1200, LC-1401, LC-1411 cables and LTC-002/003/004 tools
- Compressed size 33.5 x 14.35 mm, 17.4 g
Description
The LEMCO LBC-001 is a BNC male compression connector built for reliable, weatherproof RF and CCTV signal termination. With a brass CuZn 39Pb3 body, nickel plating, and a gold-plated inner conductor, this connector delivers strong shielding (>140 dB), low signal loss, and a secure 250 N-rated compression fit across a wide -40°C to +100°C range.
