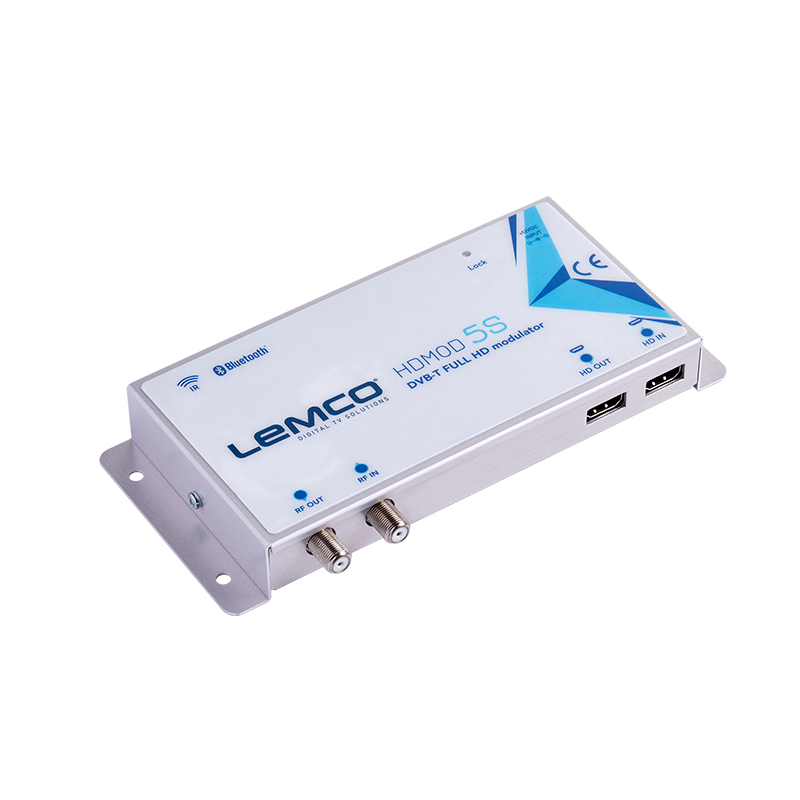

HDMOD-5S DVB-T (H.264 HD) Bluetooth modulator

The HDMOD-5S is a high-quality DVB-T “Home” modulator with HDMI loop through circuit. It receives one HDMI signal as input and converts it into one RF DVB-T channel output as well as in HDMI out. The excellent picture (Full HD 1920*1080-30p) and modulation quality (MER~35dB) renders the HDMOD-5S an ideal solution for distributing SD/HD digital signals received from any de-
vice (e.g. a DVD player, STB or camera) in a CATV network using the DVB-T technology.

The user has the ability to control the device remotely using a Bluetooth interface by downloading and using the appropriate application from Google play or IOS App Store for free.

Finally, the HDMOD-5S’s small size and metal case provides excellent electromagnetic shielding as well as great temperature dissipation and rigidness.

Features
• High quality and performance
• Very clean RF spectrum
• HDMI input
• RF & HDMI loop-through circuit
• MER value ~ 35dB
• RF output frequencies 174…230 MHz & 470…862 MHz
• H.264 HD encoder bitrate 1-19Mbps
• HDCP support

• IR support­-
• Bluetooth interface

• Very small size
• External power supply
