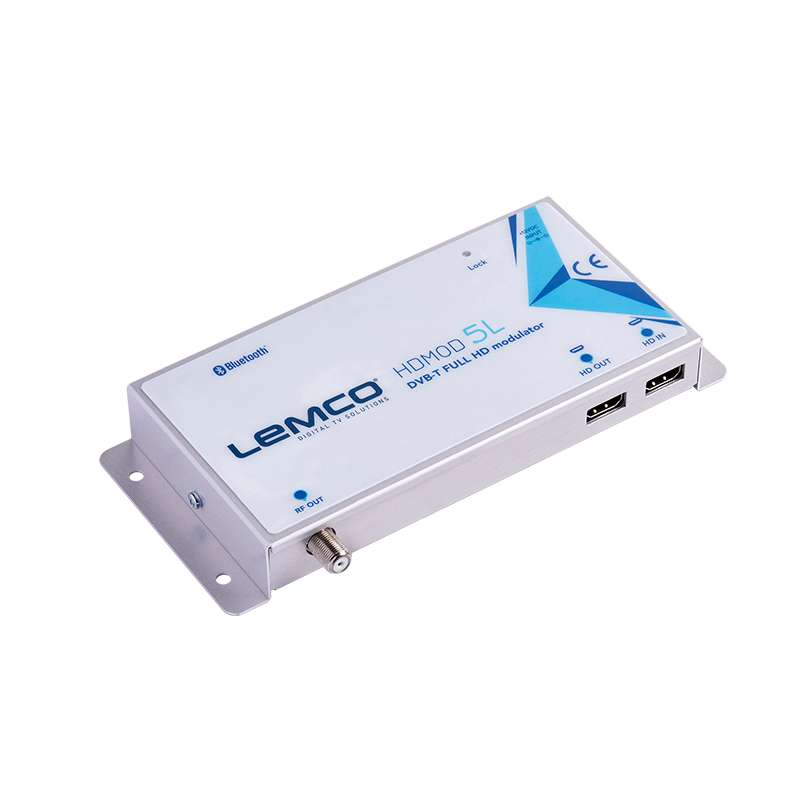

HDMOD-5L DVB-T (H.264 HD) Bluetooth modulator

The HDMOD-5L is a high-quality DVB-T “Home” modulator with HDMI loop through circuit. It receives one HDMI as input and converts it into one RF DVB-Tchannel output as well as in HDMI out. The excellent picture (Full HD 1920*1080-30p) and modulation quality (MER~35dB) renders the HDMOD-5L an ideal solution for distributing SD/HD digital signals received from any device (e.g. a DVDplayer, STB or camera) in a CATV network using the DVB-T technology. The user has the ability to control the device remotely using a Bluetooth inter face by downloading and using the appropriate application from Google Play or IOS App Store for free.Finally, the HDMOD-5L’s small size and metal case provides excellent electromagnetic shielding as well as great temperature dissipation and rigidness.

Features
• High quality and performance
• Very clean RF spectrum
• HDMI input
• HDMI loop-through circuit
• MER value ~ 35dB
• RF output frequencies 174…230 MHz & 470…862 MHz
• H.264 HD encoder bitrate 1-19Mbps
• HDCP support
• Bluetooth interface
• Very small size
• External power supply
